環(huán)境參數(shù)

Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55

輸入連接

Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover

額定阻抗

Passive: N/A, Bi-amp: 8 Ω Biamp

頻率響應(-3分貝)

35 - 100Hz

頻率響應(-10分貝)

28 - 650Hz

建議高通頻率

33Hz

靈敏度(1瓦/1米)

99dB

最大. 聲壓級/1米 (計算)

131dB

系統(tǒng)功率處理(連續(xù)/音樂//峰值)

400, 800, 1600 Watts

低頻換能器

EVS18SB, 18 in (457mm) Driver

最小負荷阻抗

Passive: N/A, Bi-amp: 6 Ω Biamp

箱體材料

13 Ply Weather Resistant Birch

柵格

Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind

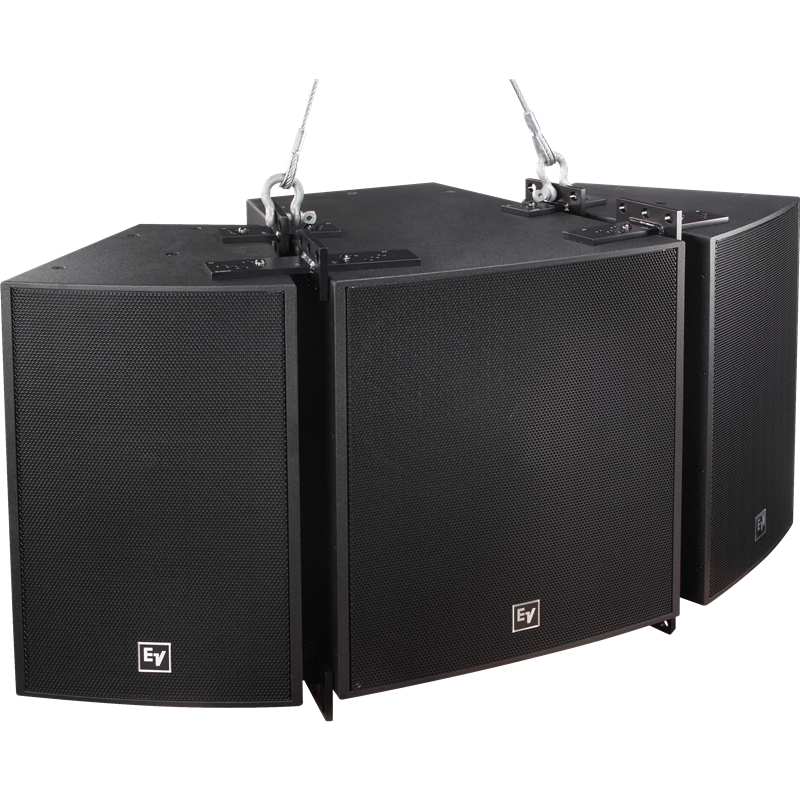

吊掛

(28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)

高度

768.6mm (30.26")

寬度

675.6mm (26.6")

深度

726.4mm (28.6")

凈重

45.9kg (101.19lbs)
