IPCP Pro 350 IP Link Pro 智能控制處理器

支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板支持行業安全標準的通信協議支持 LinkLicense? 2 個支持軟件握手的雙向 RS-232 串行端口 1 個支持硬件和軟件握手的雙向 RS-232 RS-422 RS-485 串行端口

咨詢熱線：010－84572118

產品特性
詳細參數

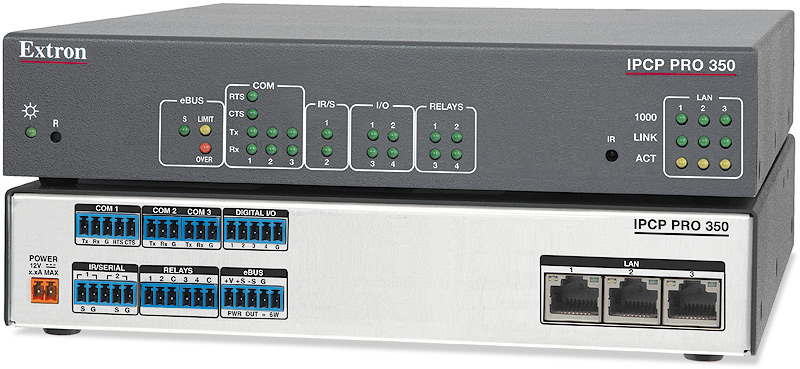

Extron IPCP Pro 350 是一款通用的高性能控制處理器，設計在中型應用環境中進行集中式視音頻控制。作為 IP Link? Pro 系列的組成部分，IPCP Pro 350 采用安全標準和千兆以太網，確保了在標準網絡架構上與多個 TouchLink? Pro 觸摸屏兼容。它還支持 Extron LinkLicense?，進一步增強了 Extron Pro 系列控制系統的功能。IPCP Pro 350 是控制一個視音頻系統內的多個設備和多種控制信號類型的理想之選。

特性

支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板

支持行業安全標準的通信協議

支持 LinkLicense?

2 個支持軟件握手的雙向 RS-232 串行端口

1 個支持硬件和軟件握手的雙向 RS-232/RS-422/RS-485 串行端口

2 個紅外/串行端口，用于外部設備的單向控制

4 個數字輸入/輸出端口

4 個繼電器，用于控制房間功能

eBUS 端口用于連接 eBUS 按鍵面板和附件

以太網監視和控制

集成三端口網絡交換機

支持常見的 BMS（建筑管理系統協議），如 BACnet、KNX 和 DALI

隨附外置 Extron Everlast? 電源，產品編號 #70-1174-01 — 該通用型電源具有經驗證的高可靠性和低功耗，能夠降低運行成本

Extron Everlast 電源可享受 7 年部件及人工保修

Memory
IPCP Pro 350

SDRAM	512 MB
Flash	4.5 GB

Software and control options
Software	Extron Global Configurator? Plus and Professional for Windows?, Global Scripter?
Control options	GlobalViewer?, Extron Control for iPad and Web, TouchLink? Pro touchpanels, or eBUS? button panels

Ethernet control
Network interface controllers (NICs)	1
Network switch	1 unmanaged 3 port switch
Connectors	3 female RJ-45 connectors
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Serial control
Quantity/type	1 bidirectional RS-232, RS-422, RS-485 (port 1) 2 bidirectional RS-232 (ports 2 and 3)
Connectors	(1) 3.5 mm captive screw connector, 5 pole (2) 3.5 mm captive screw connectors, 3 pole
Baud rate and protocol	300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
NOTE The 5-pole ports support both hardware and software flow control.The 3-pole ports support software flow control.The default for both types of ports is no flow control.
Pin configurations
Serial, 5-pole captive screw
RS-232 (default)	Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS
RS-422	Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+
RS-485	Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+
Serial, 3-pole captive screw	Pin 1 = Tx, 2 = Rx, 3 = Gnd

Digital I/O control
Quantity/type	4 digital input/output (configurable)
Connectors	(1) 3.5 mm captive screw connector, 5 pole
Digital inputs
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	>10k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	>2.8 VDC
Threshold high to low	<2.0 VDC
Digital outputs	250 mA sink from 24 VDC max.
Pin configurations	1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd

IR/serial control
Quantity/type	2 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
Connector	(1) 3.5 mm captive screw connector, 5-pole
Baud rate and protocol (RS-232)	300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
Pin configurations	For each port, pin 1 = signal, 2 = Gnd
IR output carrier frequency	30 kHz to 300 kHz
IR learning carrier frequency	30 kHz to 300 kHz
IR learning capture distance	2" (5.1 cm) to 12" (30.5 cm) from the front panel

Relay control
Quantity/type	4 normally open relays
Relay control connectors	(1) 3.5 mm captive screw connector, 6 pole
Relay control contact rating	24 VDC, 1 A

eBUS control
eBUS control ports	(1) 3.5 mm captive screw connector, 5 pole (uses 4 poles)
eBUS pin configuration	+V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type	Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length	1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details.
eBUS power output	6 watts

General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts
Power input requirements	12 VDC, 1 A, 12 watts, max.
Power consumption
Device	9.8 watts, 12 VDC
Device and power supply	11.9 watts, 100-240 VAC, 50-60 Hz
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	12.9 BTU/hr
Device and power supply	19.9 BTU/hr
Mounting
Rack mount	Yes, with optional 1U rack shelf
Enclosure type	Metal
Enclosure dimensions	1.7" H x 8.7" W x 6.0" D (1U high, half rack wide) (4.3 cm H x 22.1 cm W x 15.2 cm D) (Depth excludes connectors.)
Product weight	1.4 lbs (0.6 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL UL Listed for use in plenum air handling spaces
EMI/EMC	CE, C-Tick, FCC Class A, ICES, KCC, VCCI
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
